ZB200 Multi-span Bailey Bridge ----Specification

* Standard : ASTM, GB,BS

* Material : Q345B

* Single Span 9~24m ;

* Net Width : 4.2m for single ; 7.35m for double lane;

* Type : Heavy

* Application Scope : Road Construction ; Railway Construction ;

Emergency Usage ; Military Usage :

Introduction:

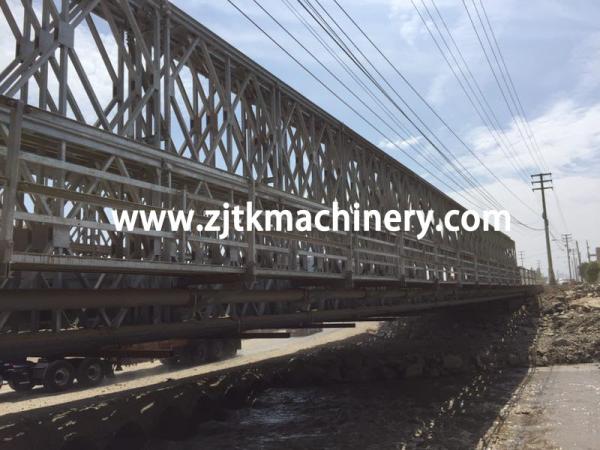

ZB200 Bailey Bridgeis a standard bridge equipment, adopted extensively and the most popular in the world, possessing the features of simple structure, convenient transport, speedy erection and easy disassembling, while having the advantage of heavy loading capacity, great stability and long fatigue life being capable of an alternative span, loading capacity and mixture form to erect all kinds of Temporary Bridges, Emergency Bridges and Fixed Bridges. The bridge has the advantages of few components, light weight and low cost. Bailey bridge is similarly like Mabet compact 200 ,Acrow bridge International bridge. it is assembled by each 3.048m panel. The Zb200 panel bridge can be easily dissembled and rapidly erected. The whole bridge is made by high-tensile strength steel. Main beam is light weight panels and the panels are connected by panel connection pins. It is easy to assemble or disassemble and transport. It can also be assembled into different forms of panel bridges according to their span length and transportation requirement. So, it has been widely applied as emergency transportation, temporary or permanent bridge. Its suitable load design is such like HS-15, HS-20, HS-25,HL-93,HS-30 and pedrail-50 etc.

Zhenjiang Tongkai Mechanical Engineering Co., Ltd. is a company specializing in the production and exporting of steel bridges, steel structures and other machined parts. The company's main products include modular steel bridges, steel truss bridges, and steel structure products; Tongkai products are widely used in various industries with their excellent quality and advanced design. They not only have a large sales market in China, but also are exported to Southeast Asia, Africa, South America and other countries.

The company has a wealth of management personnel, skilled design and experienced construction team, proficient in the application of CAD, MIDAS CIVIL, SolidWorks software； With a purpose of " first quality, promptly delivery, customer first, reputation as the base, we will provide you with a variety of products. Our products, regardless of the size of the project, are all can be customized according to customer requirements and structural drawings. We have the strength to do better for you with a reasonable price, first-class quality, first-class service and first-class reputation!

After several years of production, operation and exploration, Tongkai has established its own quality management system, which has passed ISO9001: 2015 quality system certification, EN1090 EU CE certification, and ISO3834 welding certification. Tongkai always implements the concept of customer value creation, customize products for customers to meet the needs of different customers, and continuously provides customers with solutions and technologies to solve problems.
