Steel Pedestrian Foot Bridge

The design and construction of steel pedestrian foot bridges differs depending on where they are to be situated and how large they have to be. A simple beam bridge is are usually used for short spans and a truss bridge is usually required for longer spans.

However steel pedestrian foot bridges that have a short span but are covered, benefit from construction with trusses.

Other design features to consider for steel pedestrian foot bridges are whether they have their walls closed, either for climatic protection or to protect the road or rail below from possible debris, how access to the pedestrian bridges is gained for example by stairs, or ramps suitable for wheelchair, or both. Lifts may also be needed for further disabled access.

Also to be considered before a steel pedestrian foot bridge is constructed is the site conditions as some can be situated in awkward places and we would need to know of any difficulties that maybe encountered.

All dimensions for steel pedestrian bridge construction are possible but longer clear spans can become more expensive. We normally recommend hot dipped galvanising of the steelwork and nothing else.

Designed for pedestrians and cyclists rather than vehicular traffic
Useful for crossing water/railways where there are no road bridges
Allow safe crossing of busy roads
Can also be used for walkways between buildings or in car parks
Must be at least 1.2m wide (unless designed for maintenance work only), but can be as wide as needed
Can be the simplest beam type with hand rails, or a through-truss with hand rails fixed to the two trusses
Through-trusses useful if the bridge is to have overhead cover and sides with cladding or mesh (essential for road or rail crossings)

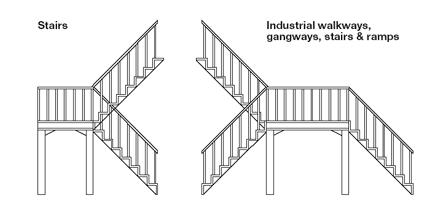

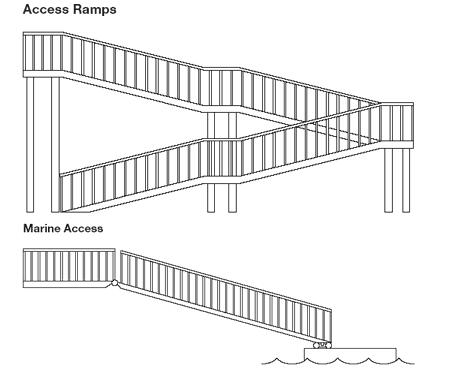

Usually require stairways and ramps.

Zhenjiang Tongkai Mechanical Engineering Co., Ltd. is a company specializing in the production and exporting of steel bridges, steel structures and other machined parts. The company's main products include modular steel bridges, steel truss bridges, and steel structure products; Tongkai products are widely used in various industries with their excellent quality and advanced design. They not only have a large sales market in China, but also are exported to Southeast Asia, Africa, South America and other countries.

The company has a wealth of management personnel, skilled design and experienced construction team, proficient in the application of CAD, MIDAS CIVIL, SolidWorks software； With a purpose of " first quality, promptly delivery, customer first, reputation as the base, we will provide you with a variety of products. Our products, regardless of the size of the project, are all can be customized according to customer requirements and structural drawings. We have the strength to do better for you with a reasonable price, first-class quality, first-class service and first-class reputation!

After several years of production, operation and exploration, Tongkai has established its own quality management system, which has passed ISO9001: 2015 quality system certification, EN1090 EU CE certification, and ISO3834 welding certification. Tongkai always implements the concept of customer value creation, customize products for customers to meet the needs of different customers, and continuously provides customers with solutions and technologies to solve problems.
