The design of TK200 bailey Bridge allows the system to be used in a logistic role throughout the support area. As a Line of Communication bridge it can carry loads of up to Class 110 over gaps of up to 60m (200ft). The bridge is ideally suited for areas where speed of deployment is vital.

Specification:

* Model : ZB200 bailey bridge ,Double Lane

* Width: 7.35m

* Single Span :9~60m

* Loading : HS15,HS-20-44 ,HS25-44 ,HL93 , HA ,HA+HB, trailers, caterpillers,half-track-vehicle

Features :

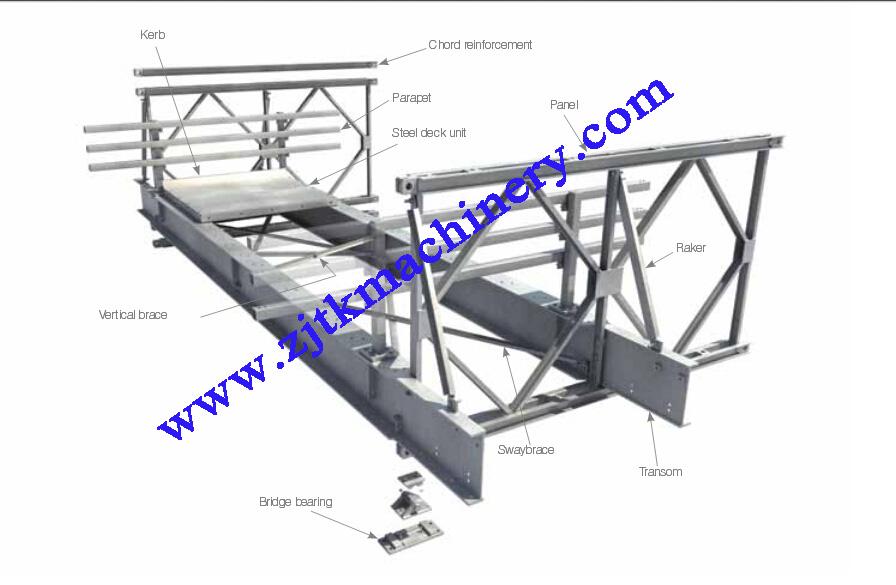

• Modular, pre-engineered, pre-fabricated bridge system

• Highly adaptable, fully reusable and re-locatable

• Transported in standard ISO containers

• Quick and simple to build using labour

• Fully galvanized for long life and minimum maintenance

• 3.048m module length

• 4.2m (single lane ), 7.35m (double lane)

• 0.5m ,1m and 1.5m perdestrian footways

• Proprietary steel decking systems to suit different loading requirements

• Durbar finish or factory applied anti-skid surfacing

• Full highway load carrying capability

• Simple, cost effective foundations

SECTION PROPERTIES(ONE TRUSS)

ALLOWABLE STRESS OF PANEL

Material yield strength of panel σ_S=345MPa

Material allowable stress [σ]=0.8×σ_S=276 MPa

Allowable bearing stress [N]= [σ]×F×φ=276×2548×0.751=528kN=54t

Stability factor of chord SSφ_SS=0.751；DS φ_DS=0.897

Allowable moment of panel [M]= [N]×h=528×2.134=1127kN·m=115t·m
